Key Highlights
Three-Side Open Access

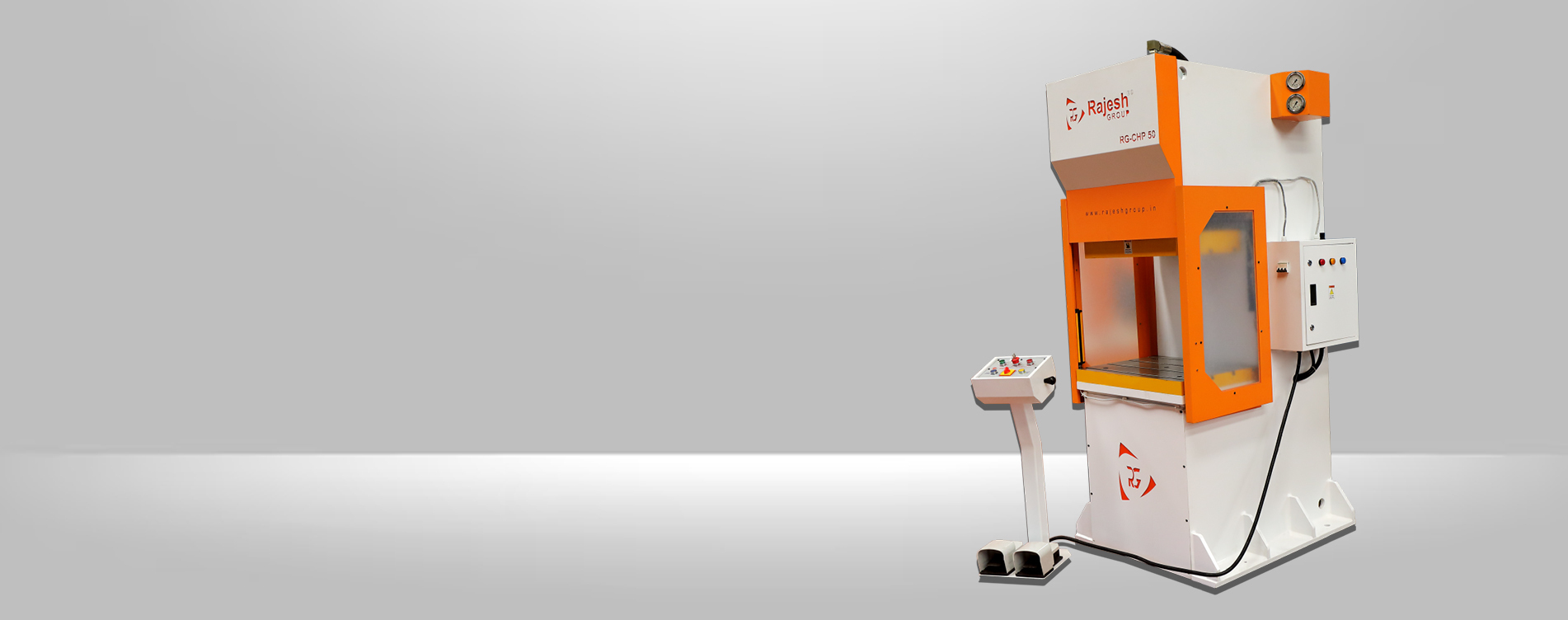

Open-throat C-frame design ensures full visibility and easy loading/unloading for varied part sizes.
Indigenous FE-Analysed Structure
Compact, welded frame crafted from ultrasonically tested steel for strength, accuracy, and durability under high pressure.
Flexible Sizing Options
Available in multiple table sizes and throat depths to suit specific die and component requirements.
Long-Life Hydraulic Cylinder System
Cylinders are made from seamless honed tubes and hard chrome-plated rods. Integrated with PTFE seals and bronze guide tapes to ensure high wear resistance and smooth operation.
Multi-Speed Functionality (Optional)
Different approaches, pressing, and return speeds save time per cycle and optimize efficiency.
Built for Longevity
Fitted with international-grade hydraulic and electrical components to ensure extended machine life and service stability.
Standard Accessories
- Main drive induction motor
- Electric control panel with ‘Inch’ & ‘Single Cycle’ modes
- Dual foot switches for operator safety and ease
- Fine stroke adjustment rod with integrated limit switch
Applications
- Metal Forming — Blanking, stamping, light bending
- Assembly Pressing — Bushings, bearings, shaft fittings
- Packaging Tasks — Compression-based sealing or packing
- Toolroom Use — Light-duty die setups and part fitting
Optional Accessories & Upgrades
Smart Controls
- Microprocessor-based PLC with on-screen function controls
- Digital stroke, pressure, and tonnage setting
- Stroke reversal via pressure or position sensing
Die Handling Aids
- Die resting support arm
- Quick hydraulic die clamping
- Hydraulic die lifting mechanism
Advanced Safety Systems
- Infrared safety curtains (front & rear)
- Transparent polycarbonate safety cover
- Low oil level and high temperature alarms
Cooling & Maintenance
- Air-cooled oil heat exchanger for consistent temperature control
Automation Ready
- Robot interface connectivity
- Mechanical or hydraulic ejector provisions
Frame Options
- Fully stress-relieved structure (optional) for extreme duty cycles
