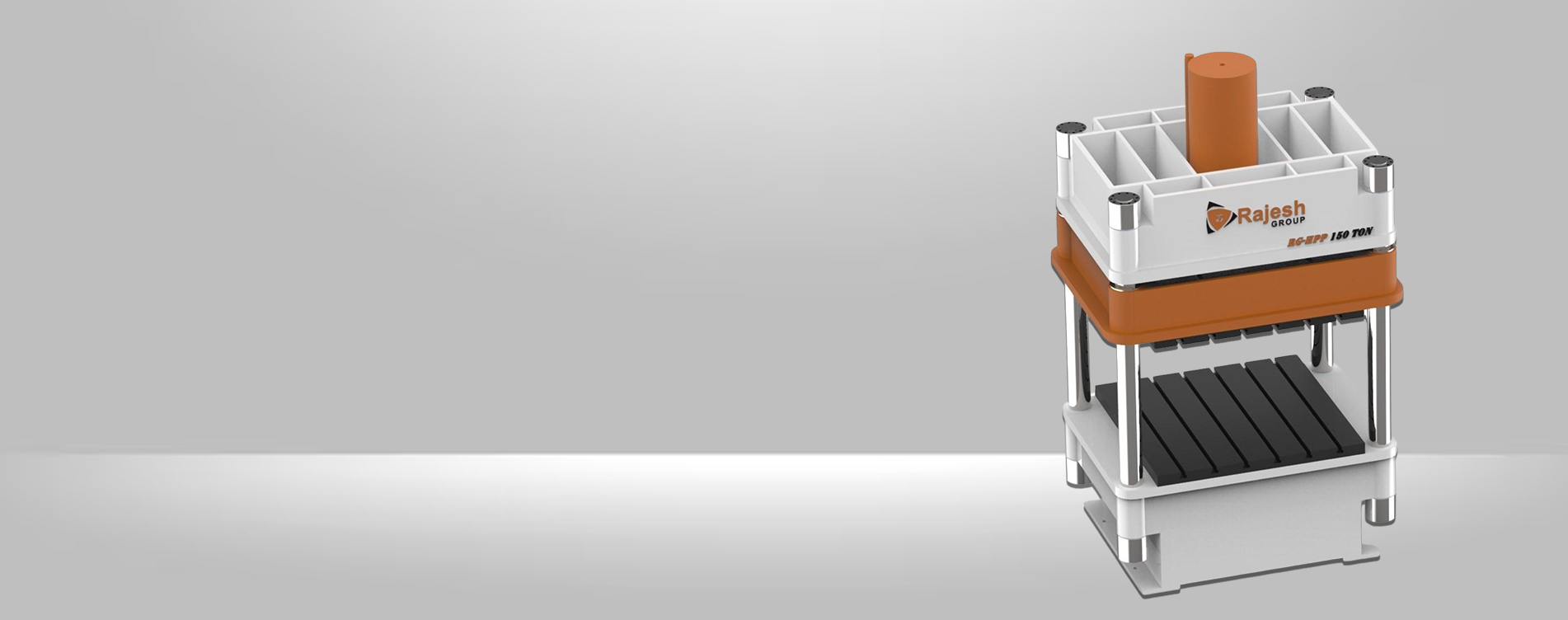

The Hydraulic Press Machine H-Frame Press from Rajesh Global Machines Pvt. Ltd. is designed for serious industrial workloads. With a stress-relieved, FE-analysed frame, adjustable dovetail guides, and optional smart automation features, it delivers unmatched strength, accuracy, and service life. Built for forming, punching, straightening, and precision pressing — this press is the backbone of any heavy-duty fabrication line.
Why Choose Rajesh Hudraulic H-Frame Press
FE-Analysed Rigid Construction
Built to handle axial and side thrusts under full load — ideal for deep forming or long-stroke operations.
Long-Life Guided Cylinder Design
Self-guided cylinder with precision-machined outer guide arrangements ensures smooth vertical motion and longer seal life.
Adjustable Dovetail Guides
Heavy-duty guides resist misalignment and deliver accurate pressing across the stroke.
Smart Cycle Efficiency
Optional multi-speed operation for approach, pressing, and return strokes reduces idle time and boosts throughput.
Flexible Integration Options
Robot interface, infrared curtains, and PLC-based touchscreen controls available for advanced safety and automation.
Key Features at a Glance
- Stress-relieved, FE-analysed welded steel structure
- Seamless honed cylinders with hard chrome rods
- PTFE seals and bronze guide tapes for long wear life
- Adjustable stroke with fine limit switch calibration
- Die resting support arm for ease of handling
- Transparent front safety cover with optional infrared curtain
- Low oil level + high temperature alarms for protection
- Air-cooled heat exchanger for oil temperature control
- Electric panel with “Inch” & “Single Cycle” modes
- Dual foot switch operation for operator convenience
- Mechanical or hydraulic ejector options are available
Optional Smart Features
-
On-Screen Stroke Adjustment
Real-time stroke control and diagnostics via PLC display. -
On-Screen Pressure & Tonnage Setting
Set and monitor pressing parameters digitally for every job. -
Auto Reversal Logic
Choose between pressure-sensing or position-sensing (limit switch) for ram reversal. -
Hydraulic Die Clamping & Lifting
Speeds up die changeovers and reduces manual load. -
Quick Die Setup
Smart clamping system reduces downtime between tool changes. -
Robot Interface Ready
Pre-configured for automation upgrades.
Applications Across Industries
- Metal Forming & Straightening — Sheet, plate, and heavy section shaping
- Automotive — Chassis parts, bracket pressing, gear case assembly
- Electrical & Railways — Busbars, panel housing, coupler units
- General Manufacturing — Deep drawing, bending, punching, fixture pressing
Why Rajesh Global Machines Pvt. Ltd. Is the Right Partner
- Robust Indian Engineering — Designed and built for rugged industrial use
- Customization Without Compromise — Tailored throat depth, tonnage, and die-handling solutions
- Complete Lifecycle Support — Spares, service, and training — all under one roof
- Trusted by Industrial Leaders — Installed across infrastructure, automotive, and energy sectors
Take the Load. And Deliver More.
The Rajesh Mechanical H-Frame Press is your shop floor’s strongest asset — built for accuracy, built for uptime, built for India’s heaviest bending challenges.
Contact our team for detailed specifications, configuration options, or to schedule a live demo.
