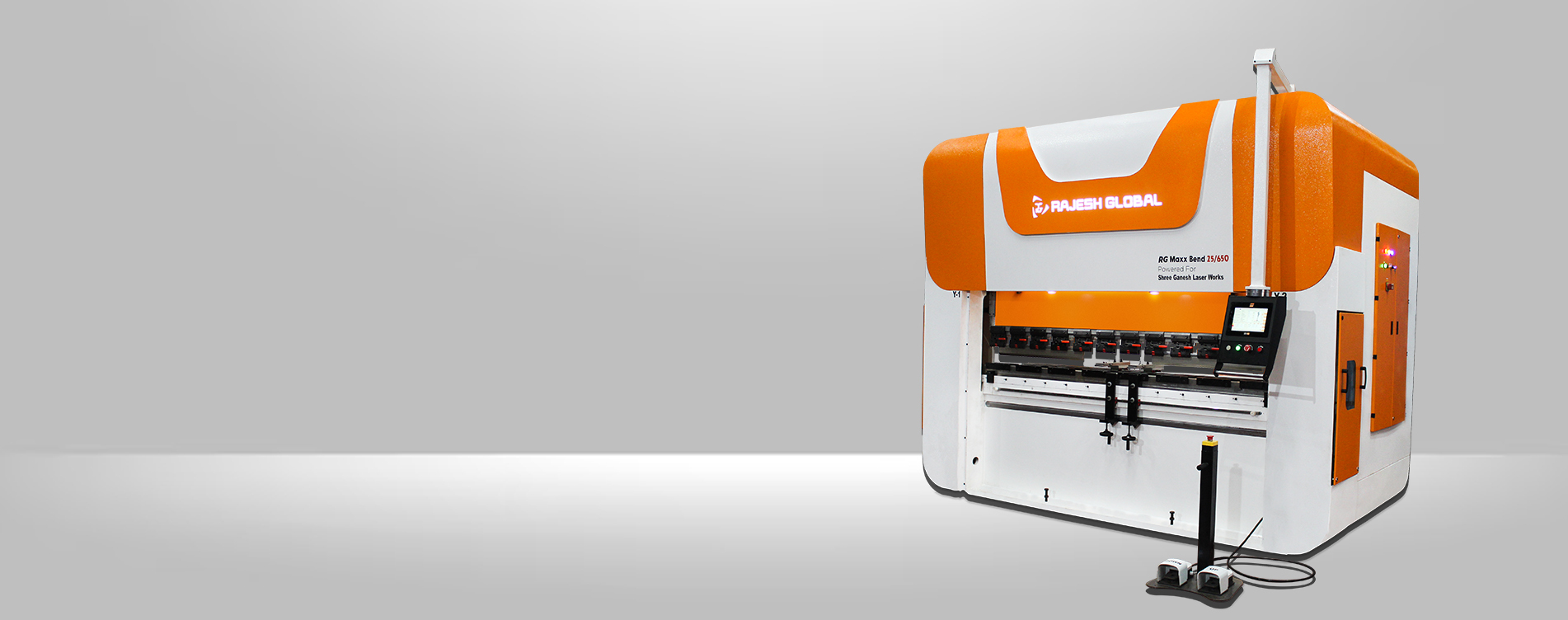

RG MAXX BEND Series CNC Press Brake Machine
Built for demanding bending applications, the RG MAXX BEND Series CNC Press Brake Machine delivers unmatched speed, efficiency, and accuracy — all while consuming less power and requiring minimal maintenance. Whether you’re handling small-scale jobs or industrial-scale production, the RG MAXX BEND Series adapts, performs, and exceeds expectations.
Features
- DHD with real-time control of approach speed.
- Completely closed-loop system
- Fully controlled approach speed through the pump.
- Full decompression control for precise springback calculation.
- Speed, position, and force controlled the servo pump
- High positioning of the ram was achieved without the use of a Proportional valve
- High Bending Accuracy +/-0.005mm
- Very fast approach, bending, and return 250-20-250 mm/s

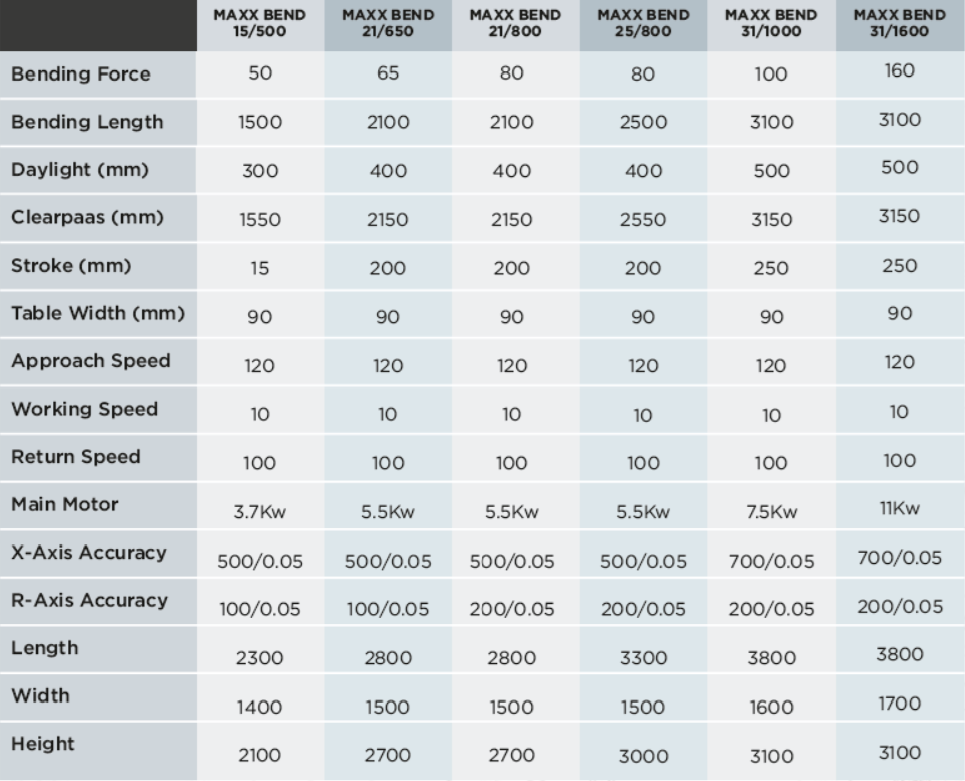

Technical Specification
Why Choose the RG MAXX BEND Series
Servo-Hydraulic Precision
Servo motor and hydraulic pump combination controls Y1 and Y2 axes with outstanding accuracy.
Faster Bending Cycles
Beam speeds up to 220 mm/sec and pressing speeds up to 16 mm/sec slash production time.
Energy Efficient by Design
Reduce power consumption by 45–50% compared to conventional hydraulic press brakes.
3-Axis CNC Control
Automatic, fast, and accurate back gauge for repeatable, high-precision bends.
Operator-Friendly Interface
CybTouch 8PS Controller by CYBELEC Switzerland — intuitive, visual, and powerful.
Ultra-Silent Operation
Smooth, low-noise machine performance enhances the working environment.
Key Features That Set It Apart
Precision Automation (Y1, Y2, X)
- Servo-hydraulic closed-loop control
- ±0.01 mm repeatability for consistent bend angles
- Auto-adjusting back gauge for high-speed material handling
Energy-Saving Performance
- Smart hydraulic system reduces idle energy draw
- Stable oil temperature = steady pressure and consistent results
- Lower oil volume required = reduced heat and maintenance
Heavy-Duty Build
- IS:2062 grade steel frame, ultrasonically tested
- Machined on floor boring machine for single-reference alignment
- 12-point roller bearing guided upper beam — minimal deflection, high rigidity
Smart CNC Controller
- CYBELEC touchscreen interface (CybTouch 8PS)
- Easy programming of sequences and angles
- Designed for operators of all experience levels
Sheet Handling & Tooling Flexibility
- Quick-release punch clamps
- Front sheet supports with LM guides
- Ball screw–driven back gauge for smooth, silent travel
Applications Across Industries
- Automotive : Brackets, chassis panels, body structures
- Aerospace : Lightweight alloys and titanium with exact tolerances
- Construction : Steel cladding, architectural elements, structural parts
- General Fabrication : From prototypes to full-run production with confidence
This machine fits effortlessly into any fabrication floor — small or large.
Outperforms the Competition
Compared to PrimaPress, ADHMT, KRRASS, and ACCURL, the RG MAXX BEND Series offers:
- Up to 50% energy savings — more output with lower cost
- Superior build quality — rugged frame and precision machining
- Faster speed-to-output ratio — reduced cycle times
- Custom-built configurations — designed to suit your specific job requirements
All backed by Rajesh Global Machines Pvt. Ltd.’s trusted service and manufacturing expertise.
Additional Advantages
- Low Maintenance Design — Built for long intervals between service
- Tool Compatibility — Works with a variety of dies and punches
- Smart Diagnostics — Monitors machine health to avoid breakdowns
The RG MAXX BEND Series isn’t just efficient — it’s designed to stay efficient over years of use.
Why Fabricators Trust Rajesh Global Machines Pvt. Ltd.
- Advanced Engineering Legacy — Decades of CNC experience with global reach
- Tailored-to-Order Machines — Tonnage, size, and features that match your operations
- Reliable After-Sales Service — Installations, training, and full technical support
- India-Made. Globally Trusted. — Serving industries in over 15 countries
Technical Characteristics
- Hydraulic System : HOREIBGER - HAWE makes a hydraulic system with a servo valve and a prefill block
- X Axis : 650 mm travel with AC servo drive and ball screw movement
- R Axis : Automatic / Manual adjustment, 200 mm travel (Selected Axis Option)
- Z Axis : Manual adjustment with linear guide movement (Selected Axis Option)
- Front Sheet Support Arms : Mounted on LM guide – sliding type (2 Nos.)
- Backgauge Fingers : 2 Nos.
- Anti-Deflection System : CNC anti-deflection table with point-to-point adjustment using European technology
- Electrical Panel : Schneider make electrical panel with integrated safety features and servo drive
- Axis Motor Type : Servo motor with inbuilt cooling fan (Auxiliary Axis)
- Tooling : Standard Tooling
Controller Options
- CYBELEC : CYB Touch 8PS / 12PS / 19PS
- STEP AUTOMATION : ROCK 12 PLUS / 15 PLUS / 17 PLUS
